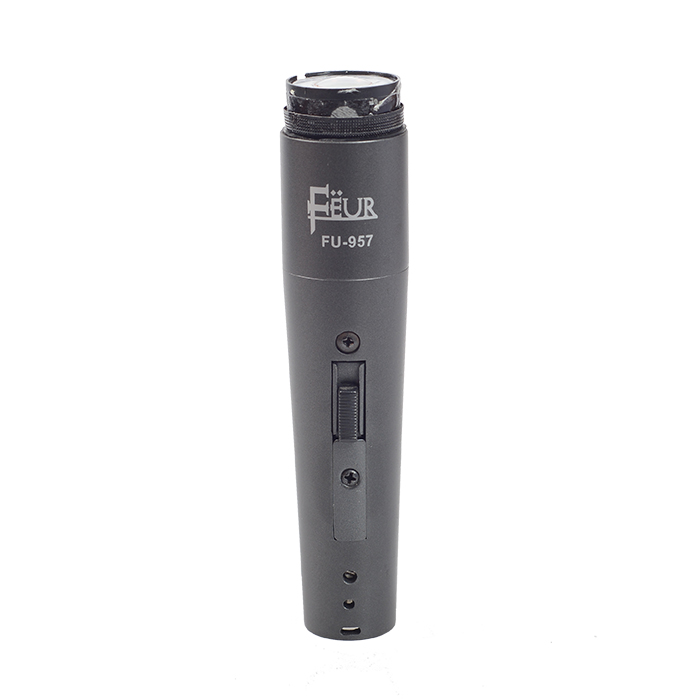

FEUR GERMANY FU-957

INSTRUMENT MICROPHONE
Microphone Type: Dynamic
Polar Pattern: Cardioid (unidirectional)
Frequency Response: 30 to 13,000 Hz
Polarity: Positive pressure on diaphragm
produces positive voltage on pin 2 relative to
pin 3 of microphone output connector
Output Impedance (at 1000 Hz): 350 ohms
Sensitivity (at 1000 Hz): -55 dBV/Pa, (1.8 mV),
1 Pascal=94 dB SPL
Electromagnetic Hum Sensitivity: 25 dB
equivalent SPL in a 1 millioersted eld (60 Hz)
