The lddp1600 is a class-H power amplifier with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm.

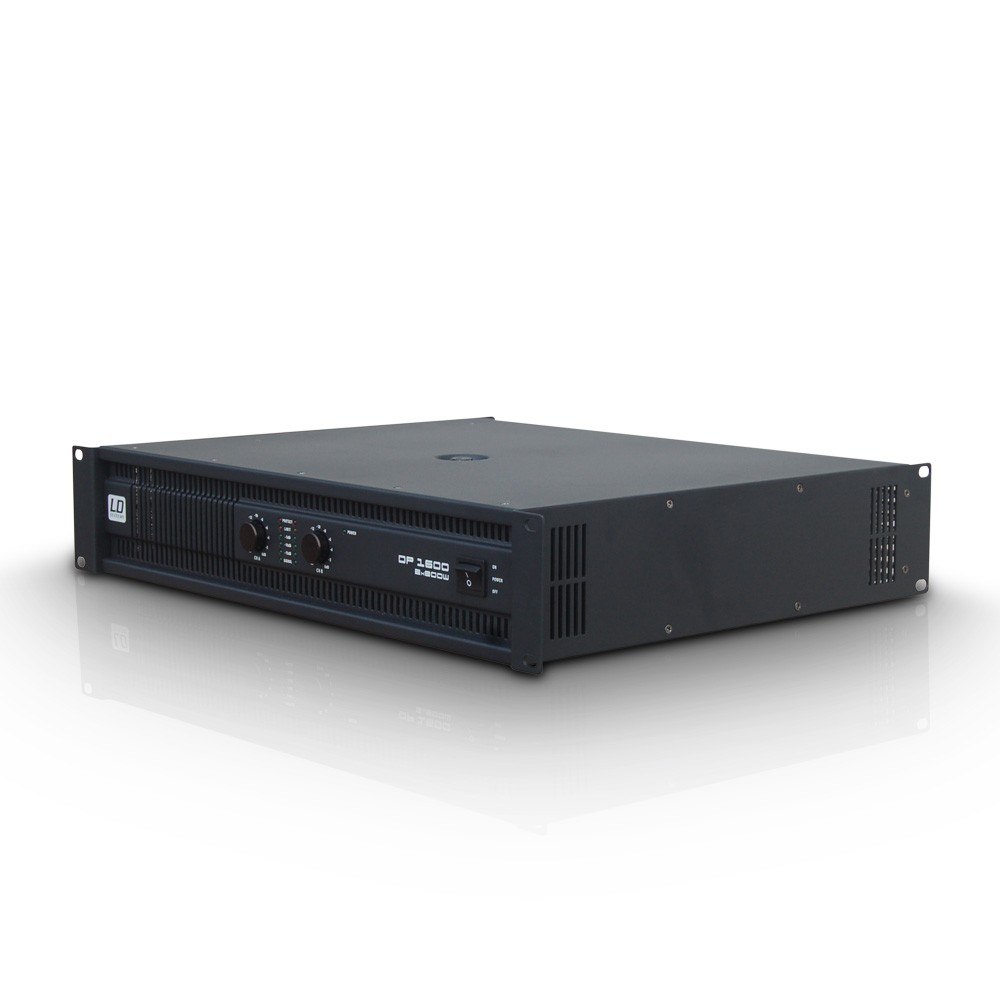

LD SYSTEMS LDD1600
Output Power 1 kHz:
2 Ohm: 2 x 800W
4 Ohm: 2 x 650W
8 Ohm: 2 x 450W
Bridge 4 Ohm: 1600W
Bridge 8 Ohm: 1300W
Output Circuity: Class H
Frequency Range: 20 Hz – 20 kHz
THD: < 0.1 %
S/N Ratio: 106dB
Damping Factor: >400 at 8 Ohms
Crosstalk: >80 dB
Voltage Gain: 38 dB
Input Sensitivity: 0.775 V
Input Impedance: >20 kOhm
Protection: DC, Temp, Short Circuit, Over Current
Controls: On/Off, 2xVolume, Ground lift, Bridge/Stereo
Indicators: Power, Signal, Volume, Limit, Protect

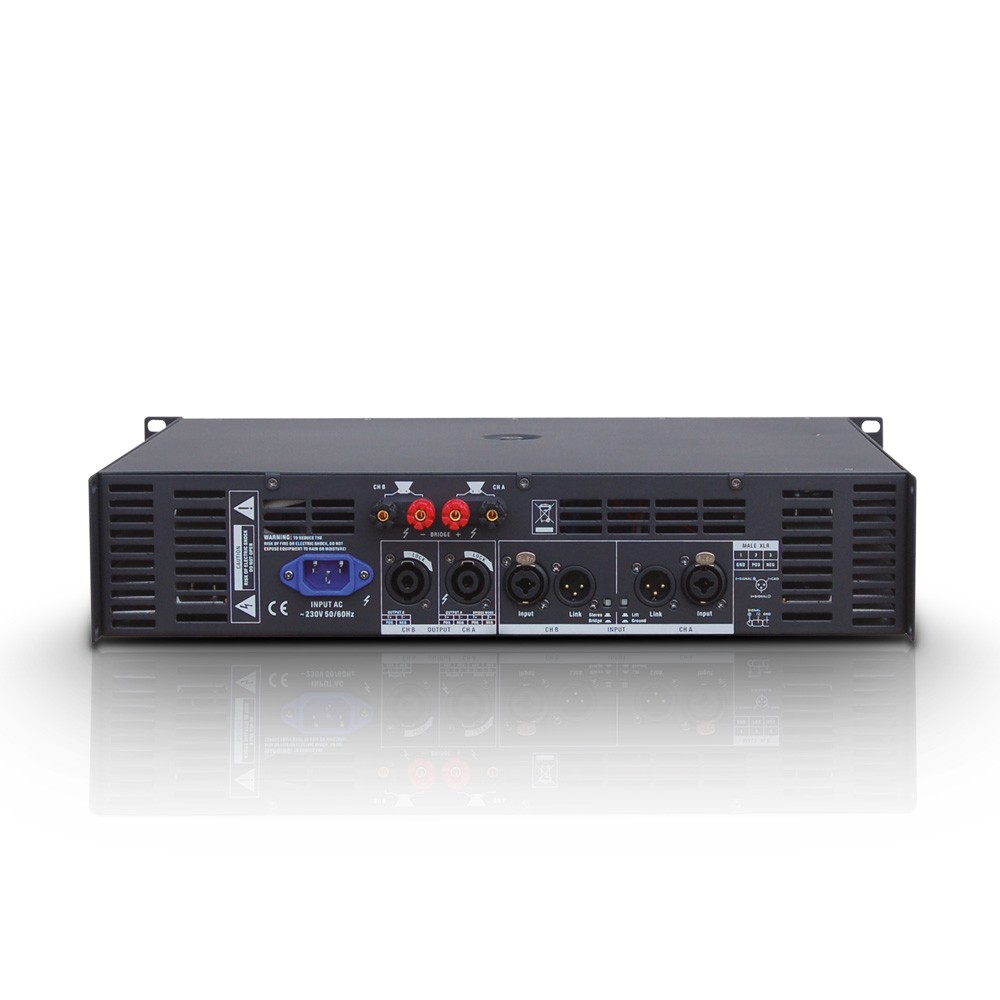

Connectors:
Input: XLR/6,3mm Jack (Combo)
Link Output: XLR
Output: Speakon compatible / Binding post
AC Input: Volex Power Plug
Cooling System: High efficienty, two speed auto controlled fan
Cooling tunnel: from front to back
Power Supply: AC ~ 230V / 50-60 Hz
