Acoustical specifications
Frequency Response-55 Hz ÷ 20000 Hz
Max SPL @ 1m:135 dB
Horizontal coverage angle:100°
Vertical coverage angle:15°
Transducers
Compression Driver:2.0”, 3.0” v.c
Woofer:2 x 10”, 2.5” v.c
Input/Output section
Input signal:bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu
Processor section
Crossover frequencies:800 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Cluster, HF, High curving, Indoor
Power section
Total Power:1400 W Peak, 700 W RMS
High frequencies:400 W Peak, 200 W RMS
Low frequencies:1000 W Peak, 500 W RMS
Cooling:Convection
Connections:Powercon IN/OUT
Standard compliance
CE marking:Yes
Physical specifications
Cabinet/Case Material:PP Composite

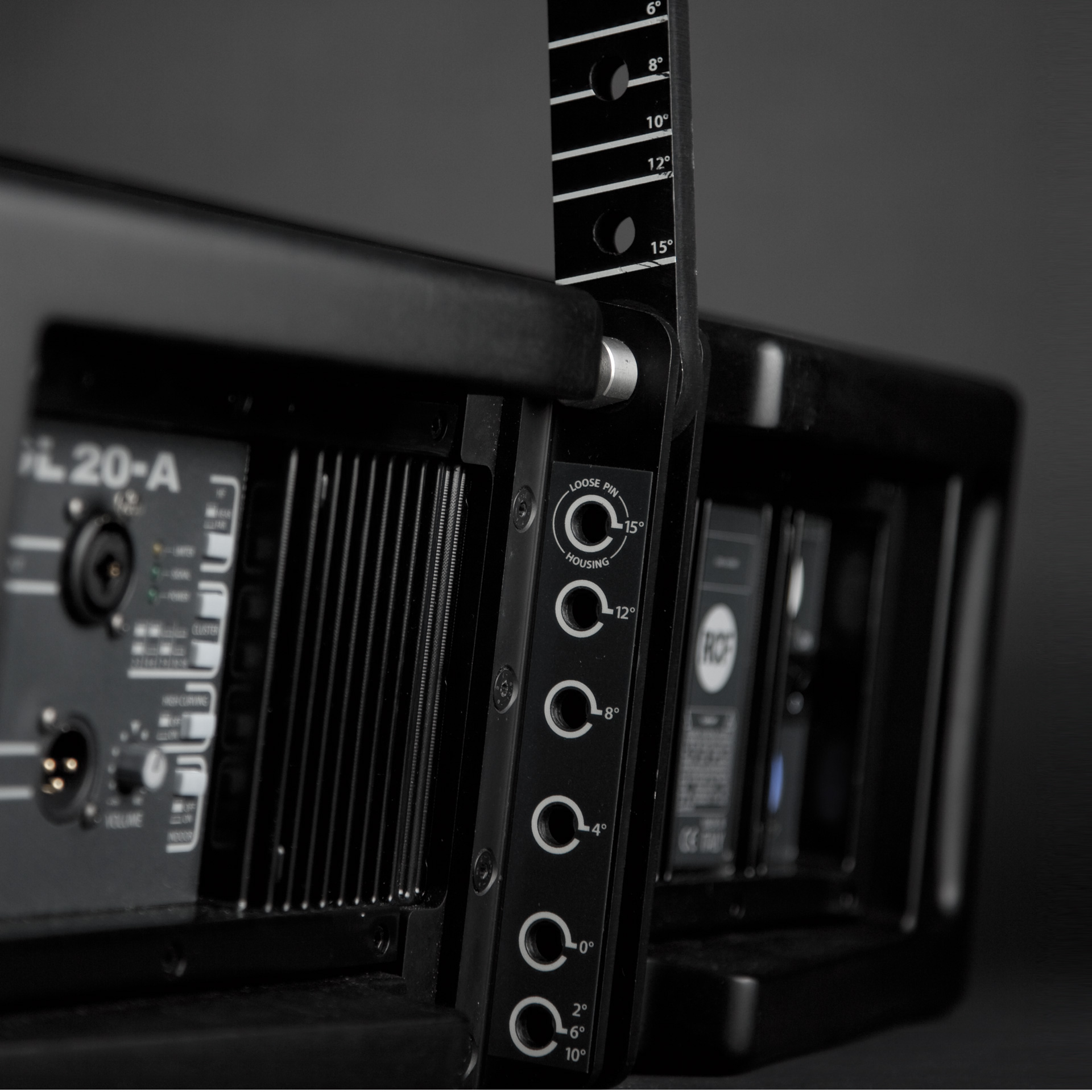

Hardware:Rigging flyware
Handles:2 side, 2 back
Grille:Steel
Color:Black
